25P10AV Datasheet PDF – 1 Mbit, Serial Flash Memory

Part Number: 25P10AV

Function: 1 Mbit, low voltage, Serial Flash memory with 50MHz SPI bus interface

Package: SO 8, VFQFPN 8 Pin Type

Manufacturer: Micron, STMicroelectronics

Image and Pinouts:

25P10AV datasheet

Description

The M25P10-A, 25P10AV is a 1 Mbit (128K x 8) Serial Flash Memory, with advanced write protection mechanisms, accessed by a high speed SPI-compatible bus.

The memory can be programmed 1 to 256 bytes at a time, using the Page Program instruction.

The memory is organized as 4 sectors, each containing 128 pages. Each page is 256 bytes wide. Thus, the whole memory can be viewed as consisting of 512 pages, or 131,072 bytes.

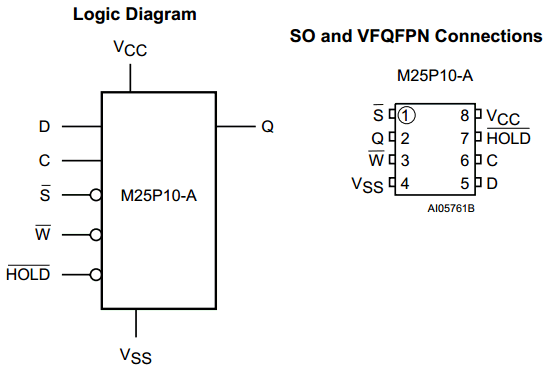

Logic Diagram and Pinouts:

components

Features

• SPI bus-compatible serial interface

• 1Mb Flash memory

• 50 MHz clock frequency (maximum)

• 2.3V to 3.6V single supply voltage

Other data sheets are available within the file:

M25P10-AVMN6, M25P10-AVMN6P, M25P10-AVMN6T, M25P10-AVMN6TP
