Part Number: 3BR1065JF

Function: Off-Line SMPS Current Mode Controller with integrated 650V CoolMOS

Package: TO-220-6 Type

Manufacturer: Infineon Technologies

Image:
3BR1065JF datasheet

Description

The 3BR1065JF is Off-Line SMPS Current Mode Controller with integrated 650V CoolMOS® and Startup cell (frequency jitter Mode) in FullPak.

The CoolSET-F3R FullPak is the enhanced version of CoolSET-F3 and targets for the Off-Line Adapters and high power range SMPS in DVD R/W, DVD Combi, set top box, etc. It has a wide Vcc range to 25V by adopting the BiCMOS technology. With the merit of Active Burst Mode, it can achieve the lowest Standby Power Requirements (<100mW) at no load and V in = 270VAC.

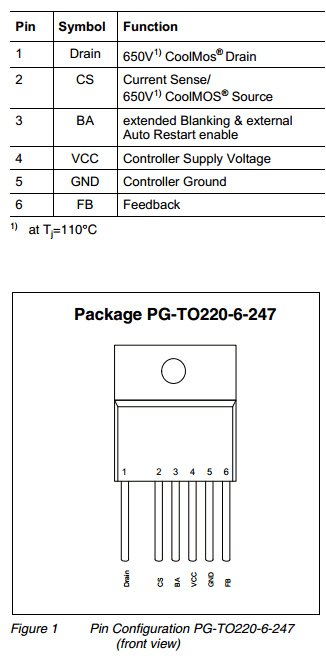

Pinouts:

components



Features

1. 650V avalanche rugged CoolMOS® with built-in Startup Cell

2. Active Burst Mode for lowest Standby Power

3. Fast load jump response in Active Burst Mode

4. 67kHz internally fixed switching frequency

5. Built-in Soft Start

6. Built-in blanking window with extendable



Other data sheets are available within the file: ICE3BR1065JF, ICE3BR1065JFXKSA2
