Part Number: 95P04
Function: SERIAL ACCESS SPI BUS 4K 512 x 8 EEPROM
Package: DIP, SO 8 Pin Type
Manufacturer: STMicroelectronics
Description
The 95P04 is a 4K bit Electrically Erasable Programmable Memory (EEPROM) fabricated with SGS-THOMSON’s High Endurance Single Polysilicon CMOS technology. The 4K bit memory is or ganised as 32 pages of 16 bytes. The memory is accessed by a simple SPI bus compatible serial interface. The bus signals are a serial clock input (C), a serial data input (D) and a serial data output (Q). The device connected to the bus is selected when the chip select input (S) goes low. Communications with the chip can be interrupted with a hold input (HOLD). The write operation is disabled by a write protect input (W).

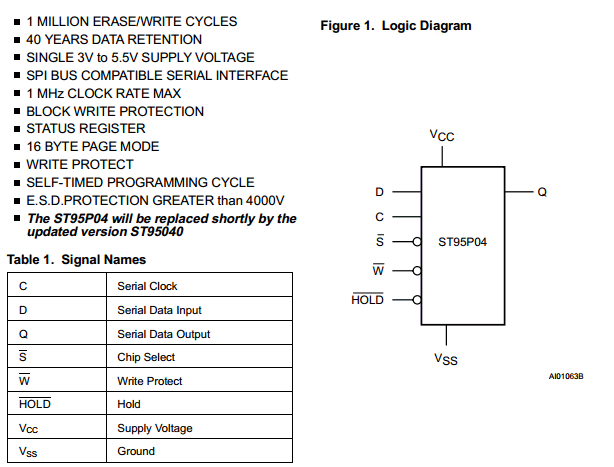

Logic Diagram :
Features
1. 1 MILLION ERASE/WRITE CYCLES
2. 40 YEARS DATA RETENTION
3. SINGLE 3V to 5.5V SUPPLY VOLTAGE
4. SPI BUS COMPATIBLE SERIAL INTERFACE
5. 1 MHz CLOCK RATE MAX
6. BLOCK WRITE PROTECTION
7. STATUS REGISTER
8. 16 BYTE PAGE MODE
9. WRITE PROTECT
10. SELF-TIMED PROGRAMMING CYCLE
11. E.S.D.PROTECTION GREATER than 4000V
95P04 Datasheet PDF
