FIN1001M5 – 3.3V LVDS 1-Bit High Speed Differential Driver

Part Number: FIN1001M5

Function: 3.3V LVDS 1-Bit High Speed Differential Driver

Manufacturer: Fairchild Semiconductor

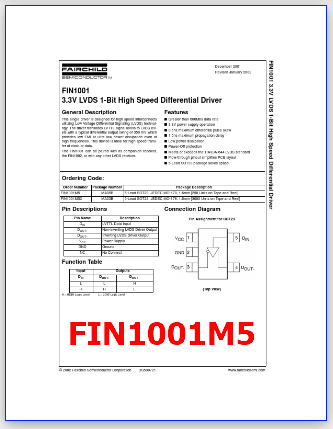

1 page
FIN1001M5 image

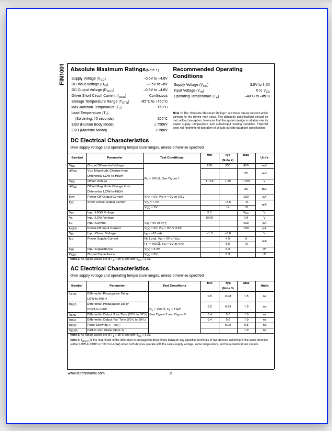

2 page


FIN1001 3.3V LVDS 1-Bit High Speed Differential Driver December 2001 Revised January 2002 FIN1001 3.3V LVDS 1-Bit High Speed Differential Driver General Description This single driver is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The driver translates LVTTL signal levels to LVDS levels with a typical differential output swing of 350 mV which provides low EMI at ultra low power dissipation even at high frequencies. This device is ideal for high speed transfer of clock or data. The FIN1001 can be paired with its companion receiver, the FIN1002, or with any other LVDS receiver. Features I Greater than 600Mbs data rate I 3.3V power supply operation I 0.5ns maximum differential pulse skew I 1.5ns maximum propagation delay I Low power dissipation I Power-Off protection I Meets or exceeds the TIA/EIA-644 LVDS standard I Flow-through pinout simplifies PCB layout I 5-Lead SOT23 package saves space Ordering Code: Order Number FIN1001M5 FIN1001M5X Package Number MA05B MA05B Package Description 5-Lead SOT23, JEDEC MO-178, 1.6mm [250 Units on Tape and Reel] 5-Lead SOT23, JEDEC MO-178, 1.6mm [3000 Units on Tape and Reel] Pin Descriptions Pin Name DIN DOUT+ DOUT− VCC GND NC Description LVTTL Data Input Non-inverting LVDS Driver Output Inverting LVDS Driver Output Power Supply Ground No Connect Connection Diagram Pin Assignment for SOT23 Function Table Input DIN L H H = HIGH Logic Level Outputs DOUT+ L H L = LOW Logic Level DOUT− H L (Top View) © 2002 Fairchild Semiconductor Corporation DS500721 FIN1001 Absolute Maximum Ratings(Note 1) Supply Voltage (VCC) DC Input Voltage (DIN) DC Output Voltage (DOUT) Driver Short Circuit Current (IOSD) Storage Temperature Range (TSTG) Max Junction Temperature (TJ) Lead Temperature (TL) (Soldering, 10 seconds) ESD (Human Body Model) ESD (Machine Model) 260°C −0.5V to +4.6V −0.5V to +6V −0.5V to +4.6V Continuous Recommended Operating Conditions Supply Voltage (VCC) Input Voltage (VIN) Operating Temperature (TA) 3.0V to 3.6V 0 to VCC −40°C to +85°C −65°C to +150°C 150°C Note 1: The “Absolute Maximum Ratings”: are those values beyond which damage to the device may occur. The databook specifications should be met, without exception, to ensure that the system design is reliable over its power supply, temperature and output/input loading variables. Fairchild does not recommend operation of circuits outside databook specification. ≥ 7500V ≥ 500V DC Electrical Characteristics Over supply voltage and operating temperature ranges, unless otherwise specified Symbol VOD ∆VOD VOS ∆VOS IOFF IOS VIH VIL IIN II(OFF) VIK ICC CIN COUT Parameter Output Differential Voltage VOD Magnitude Change from Differential LOW-to-HIGH Offset Voltage Offset Magnitude Change from Differential LOW-to-HIGH Power-Off Output Current Short Circuit Output Current Input HIGH Voltage Input LOW Voltage Input Current Power-Off Input Curr […]

3 page

FIN1001M5 Datasheet
