A fast recovery rectifier diode, also known as a fast recovery diode or fast switching diode, is a type of diode that is designed to have a short reverse recovery time.
Part Number: IRD3901
Function: 20A, 200V, FAST RECOVERY RECTIFIER DIODES
Package: DO-203AB ( DO-5 ) Type
Manufacturer: International Rectifier
Images:
Description
The IRD3901 is 20A, 200V, Fast Recovery Rectifier Diode.
This range of fast recovery diodes is designed for applications in DC power supplies, inverters, choppers, ultrasonic systems and for use as a free-wheeling diode.
In a regular diode, when the forward current is interrupted and the voltage across the diode changes from forward bias to reverse bias, there is a certain amount of time required for the diode to recover and block the reverse current. This recovery time is known as the reverse recovery time (trr) and is typically in the range of microseconds to milliseconds for standard diodes.
Fast recovery rectifier diodes are specifically designed to minimize the reverse recovery time and reduce the associated switching losses. They are optimized for high-frequency applications where fast switching speeds are required, such as in power supplies, inverters, motor control circuits, and switching power amplifiers.
Features:
1. Short reverse recovery time
2. Low stored charge
3. Wide current range
4. Excellent surge capabilities
5. Stud cathode and stud anode versions
[…]

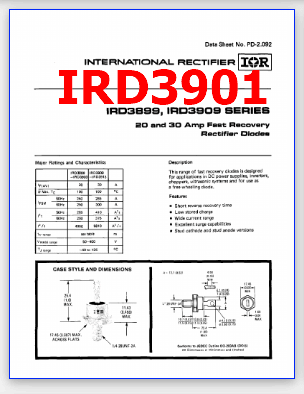

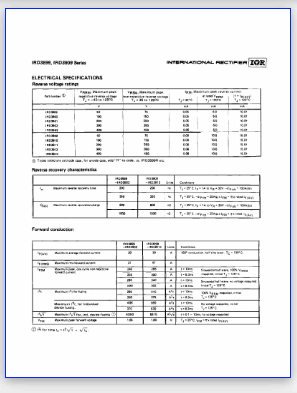

IRD3901 PDF Datasheet
