Part Number: RTL8211F-CG
Function: INTEGRATED 10/100/1000M ETHERNET TRANSCEIVER
Package: 40-pin QFN Type
Manufacturer: Realtek Microelectronics

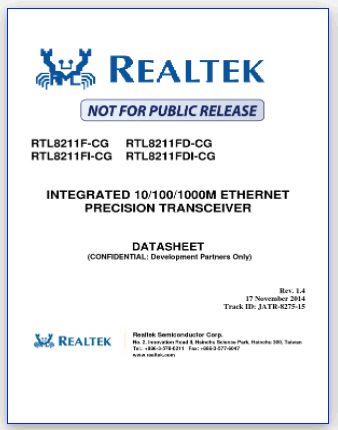

Images:
Description
The RTL8211F-CG is INTEGRATED 10/100/1000M ETHERNET TRANSCEIVER.
The Realtek RTL8211F-CG/RTL8211FD-CG/RTL8211FI-CG/RTL8211FDI-CG is a highly integrated
Ethernet transceiver that complies with 10Base-T, 100Base-TX, and 1000Base-T IEEE 802.3 standards. It provides all the necessary physical layer functions to transmit and receive Ethernet packets over CAT.5 UTP cable. The RTL8211FI and RTL8211FDI are manufactured to industrial grade standards.
The RTL8211F(I)/RTL8211FD(I) uses state-of-the-art DSP technology and an Analog Front End (AFE) to enable high-speed data transmission and reception over UTP cable. Functions such as Crossover Detection & Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented in the RTL8211F(I)/RTL8211FD(I) to provide robust transmission and reception capabilities at 10Mbps, 100Mbps, or 1000Mbps.
All rights reserved. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language in any form or by any means without the written permission of Realtek Semiconductor Corp. DISCLAIMER Realtek provides this document ‘as is’, without warranty of any kind. Realtek may make improvements and/or changes in this document or in the product described in this document at any time. This document could include technical inaccuracies or typographical errors. TRADEMARKS Realtek is a trademark of Realtek Semiconductor Corporation. Other names mentioned in this document are trademarks/registered trademarks of their respective owners. LICENSE This product is covered by one or more of the following patents: US5,307,459, US5,434,872, US5,732,094, US6,570,884, US6,115,776, and US6,327,625. USING THIS DOCUMENT This document is intended for the software engineer’s reference and provides detailed programming information. Though every effort has been made to ensure that this document is current and accurate, more information may have become available subsequent to the production of this guide. REVISION HISTORY Revision Release Date 1.0 2013/05/20 1.1 2014/02/21 Summary First release. Added RTL8211FD-CG, RTL8211FI-CG, and RTL8211FDI-CG data. Integrated 10/100/1000M Ethernet Transceiver ii Track ID: JATR-8275-15 Rev. 1.1 RTL8211F(I)/RTL8211FD(I) Datasheet Table of Contents […]
Features:
1. 1000Base-T IEEE 802.3ab Compliant
2. 100Base-TX IEEE 802.3u Compliant
3. 10Base-T IEEE 802.3 Compliant
4. Supports RGMII
5. Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)
6. Built-in Wake-on-LAN (WOL)
7. Supports Interrupt function
8. Supports Parallel Detection
9. Crossover Detection & Auto-Correction
10. Automatic polarity correction
