ACDA56-41SEKWA-F01 Datasheet – 0.56 inch, Digit Display

Part Number: ACDA56-41SEKWA-F01

Function: SURFACE MOUNT DISPLAY / Super Bright Orange

Manufacturer: Kingbright

Image and Pinouts:

ACDA56-41SEKWA-F01 datasheet



Description

The ACDA56-41SEKWA-F01 is 0.56″ Double Digit Orange SMD LED.

1. The Super Bright Orange device is made with AlGaInP (on GaAs substrate) light emitting diode chip

2. Electrostatic discharge and power surge could damage the LEDs

3. It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs

4. All devices, equipments and machineries must be electrically grounded

Features

1. 0.56 inch digit height.

2. Low current operation.

3. Excellent character appearance.

4. Mechanically rugged.

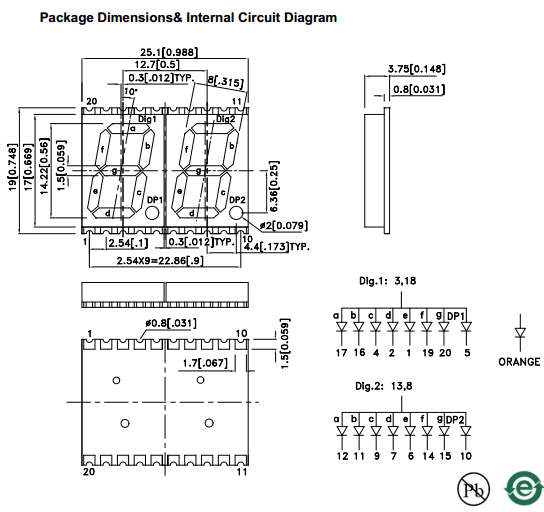

Pinout and Diagram :

components

Other data sheets are available within the file: ACDA5641SEKWAF01



ACDA56-41SEKWA-F01 Datasheet PDF Download


ACDA56-41SEKWA-F01 pdf
