ACM2002R Datasheet PDF - 20 char x 2 lines, LCD Module

Part Number: ACM2002R

Function: 20 Characters x 2 Lines, LCD Module

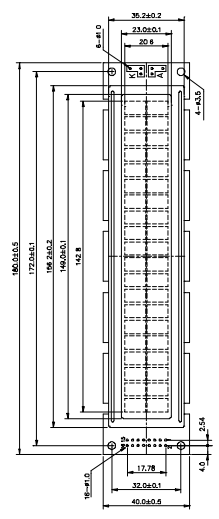

Image and Pinouts:

Description

This is 20 Characters x 2 Lines, LCD Module.

Specifications:

1. Overall Module Size :

(1) 180.0mm(W) x 40.0mm(H) x max 14.5mm(D) for LED backlight version
(2) 180.0mm(W) x 40.0mm(H) x max 9.5mm(D) for reflective version

2. Dot Size : 1.12mm(W) x 1.12mm(H)

3. Dot Pitch : 1.22mm(W) x 1.22mm(H)

4. Duty : 1/16

5. Controller IC: KS0066

6. LC Fluid Options : TN, STN

7. Polarizer Options : Reflective, Transflective, Transmissive

8. Backlight Options : LED

9. Temperature Range Options : Standard(0ºC ~ 50ºC), Wide(-20ºC ~ 70ºC)

Other data sheets are available within the file:

ACM2002RFLBD-T, ACM2002RFLBH-T, ACM2002RFLBS-T, ACM2002RFLFD-T
