AD7247BQ Datasheet – Dual 12-bit DACPORT ( PDF )

Part Number: AD7247BQ

Function: LC2MOS Dual 12-bit DACPORT

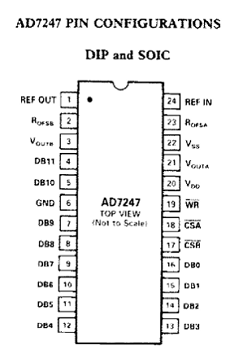

Package: DIP and SOIC 24 Pin Type

Manufacturer: Analog Devices


AD7247BQ datasheet



The AD7237A / AD7247BQ is an enhanced version of the industry standard AD7237/AD7247. Improvements include operation from 12 V to 15 V supplies, faster interface times and better
reference variations with VDD. Additional features include faster settling times.

The devices is a complete, dual, 12-bit, voltage output digital-to-analog converter with output amplifiers and Zener voltage reference on a monolithic CMOS chip. No external user trims are required to achieve full specified performance.


1. Single or Dual Supply Operation

2. Low Power – 165 mW typ in Single Supply

3. Parallel Loading Structure: AD7247A

4. Complete Dual 12-Bit DAC Comprising Two 12-Bit CMOS DAC

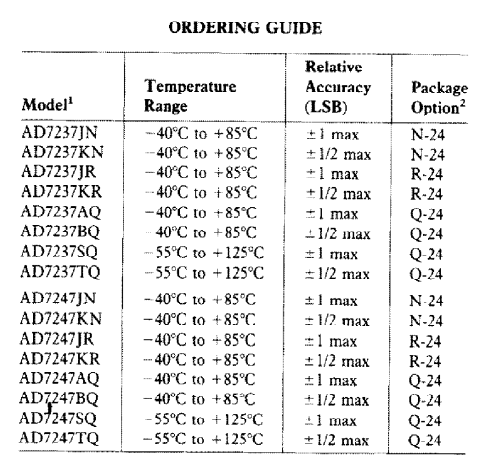

Odering Information :


Other data sheets are available within the file: AD7237, AD7237KN, AD7247, AD7247AQ
