ADS6608A4A-75 Datasheet PDF -Synchronous DRAM

Part Number: ADS6608A4A-75

Function: Synchronous DRAM, 2M x 8 Bit x 4 Banks, 133 Mhz LVTTL

Package: 400mil 54pin TSOPII

Manufacturer: A-Data Technology

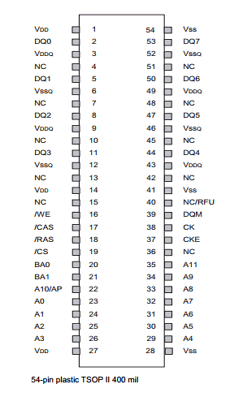

Pinouts:

ADS6608A4A-75 datasheet

Description

The ADS6608A4A-75 are four-bank Synchronous DRAMs organized as 2,097,152 words x 8 bits x 4 banks. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on everyclock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a varietyof high bandwidth high performance memory system applications

Features

1. JEDEC standard LVTTL 3.3V power supply
2. MRS Cycle with address key programs
(1) CAS Latency (2 & 3)
(2) Burst Length (1,2,4,8,& full page)
(3) Burst Type (sequential & Interleave)
3. 4 banks operation
4. All inputs are sampled at the positive edge of the system clock
5. Burst Read single write operation
6. Auto & Self refresh
7. 4096 refresh cycle
8. DQM for masking



Other data sheets are available within the file: ADS6608A4A
