AU6210HD Datasheet PDF – USB Host MP3 Decoder SOC

Part Number: AU6210HD

Function: USB Host MP3 Decoder SOC

Package: SOP 28 Type

Manufacturer: MVSILICON ( Shanghai Mountain View Silicon Technology )


AU6210HD Image



A highly integrated SOC for MP3 player, AU6210HD integrates MCU, FM receiver, MP3 decoder, OTG, SD/MMC card controller, SARADC, Audio DAC, segment LED display driver, RTC and key tone generator in a single chip. AU6210HD is suitable for low end host MP3 player solution with segment LED display.



1) Enhanced 8051, up to 10 times faster than standard 8051

2) Embedded 32KB OTP for program code storage

3) Embedded FM receiver

4) OTG 2.0 full-speed controller

5) SD/MMC card controller

6) Support MP3 decoder

7) Embedded sound equalizer

8) Support FAT16/FAT32 file system

9) Embedded 18-bit Audio CODEC

10) Support auxiliary audio input

11) Embedded SARADC for peripheral controls

12) Embedded NVM to save external EEPROM

13) Support led display during battery charging.

14) Embedded RTC.

15) Embedded key tone generator.

16) Support segment LED display.

17) GPIO for various purposes

18) Embedded LDO

19) Embedded Power-on-Reset

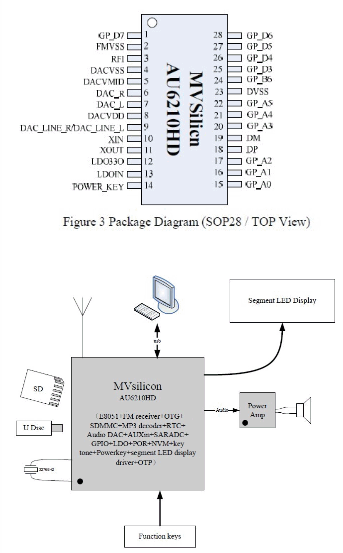

AU6210HD datasheet pinout


AU6210HD Datasheet PDF Download

AU6210HD pdf

Other data sheets are available within the file: AU6210
