AU6860M Datasheet – USB Host MP3 Decoder SOC

Part Number: AU6860M

Function: USB Host MP3 Decoder SOC

Package: TSSOP 24 Type

Manufacturer: Mvsilicon

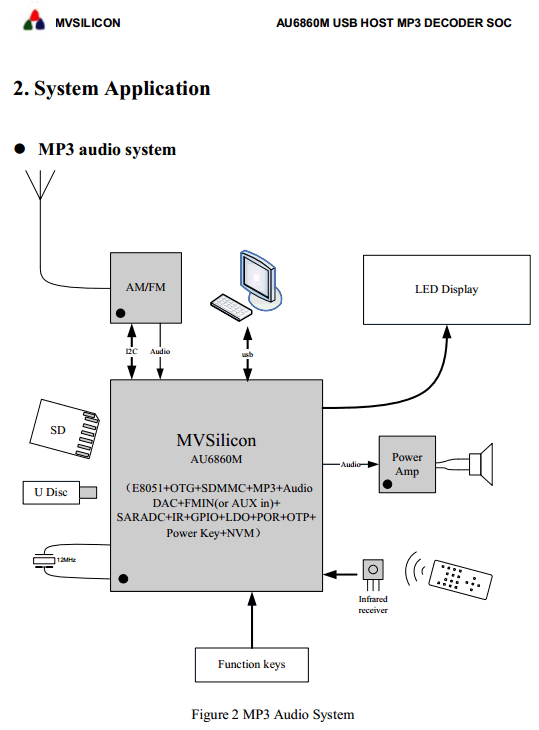

Image and Pinouts:

AU6860M datasheet



A highly integrated SOC for MP3 player, AU6860M  integrates MCU, MP3 decoder,  OTG, SD/MMC car d controller, SARADC, Audio DAC,POWER KEY and anIR decoder  in a singl e chip. Compared with traditional flash-MP3 player,  AU6860M offers low cost,  low power consumption,  flexibl e and more powerf ul host MP3 player solution.


1. Enhanced 8051, up to 10 times faster than standard 8051
2. OTG 2.0 full-speed controller
3. SD/MMC card controller
4. Support MP3 decode
5. Embedded sound equalizer
6. Support tag format ID3v1 and ID3v2.4
7. Support FAT16/FAT32 file system
8. Embedded 18-bit Audio CODEC
9. Support FM or auxiliary audio input
10. Embedded SARADC for peripheral controls
11. Support IR Remote control
12. GPIO for various purposes
13. Embedded LDO
14. Embedded Power-on-Reset
15. Embedded 32KB OTP for program code storage


Other data sheets are available within the file: AU6860
