C5763 Datasheet PDF – TO-220, NPN, Vceo=400V, Ic=7A – Sanyo

Part Number: C5763

Function: 400V, 7A, Silicon NPN transistor

Package: TO-220 Type

Manufacturer: SANYO (Panasonic)

C5763 image

Absolute Maximum Ratings ( Ta=25°C )

1. Collector-to-Base Voltage : VCBO = 700 V
2. Collector-to-Emitter Voltage : VCEO = 400 V
3. Emitter-to-Base Voltage : VEBO = 8 V
4. Collector Current : IC = 7 A
5. Collector Current (Pulse) : ICP = 14 A
6. Collector Dissipation : PC = 1.75 W
7. Junction Temperature: Tj = 150 °C
8. Storage Temperature : Tstg = -55 to +150 °C

Pinout

2SC5763 pinout datasheet

Features

1. Switching Regulator Applications
2. High breakdown voltage.
3. High reliability.
4. High-speed switching.
5. Wide ASO.
6. Adoption of MBIT process.

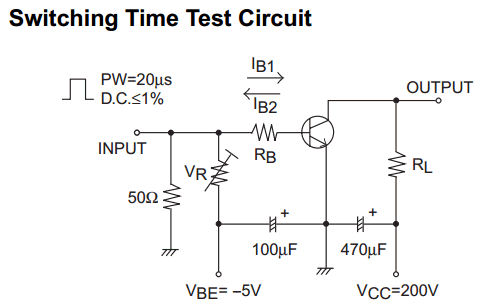

Test Circuit

components

Application

1. Switching Regulator

Other data sheets are available within the file: 2SC5763
