Part Number: HD3SS3212
Function: Two Channel Differential 2:1/1:2 10Gbps Mux/Demux
Package: VQFN 20 Pin, 2.50 mm × 4.50 mm × 0.5-mm pitch
Manufacturer: Texas Instruments
Description
The HD3SS3212 is a high-speed bidirectional passive switch in mux or demux configurations suited for USB Type-C™ application supporting USB 3.1 Gen 1 and Gen 2 data rates. Based on control pin SEL, the device provides switching on differential channels between Port B or Port C to Port A.
The HD3SS3212 is a generic analog differential passive switch that can work for any high-speed interface applications requiring a common mode voltage range of 0 to 2 V and differential signaling with differential amplitude up to 1800 mVpp. It employs adaptive tracking that ensures the channel remains unchanged for the entire common mode voltage range.

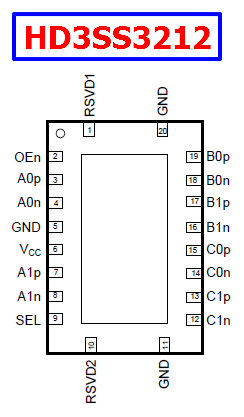

Pinouts:
Features
1. Provides MUX/DEMUX Solution for USB Type-C™ Ecosystem for USB 3.1 Gen 1 and Gen 2 Data Rates
2. Compatible With MIPI DSI/CSI, FPDLinkIII, LVDS, and PCIE Gen II, III
3. Operates up to 10 Gbps
4. Bidirectional “Mux/De-Mux” Differential Switch
5 Supports Common Mode Voltage 0 to 2 V
6. Single Supply Voltage VCC of 3.3 V
Official Homepage: https://www.ti.com/product/HD3SS3212
HD3SS3212 Datasheet PDF
