CP-022-ND Datasheet – Connector, Power JACK ( PDF )

Part Number: CP-022-ND

Function: CONN PWR JACK 0.65X2.75MM

Manufacturer: CUI Devices

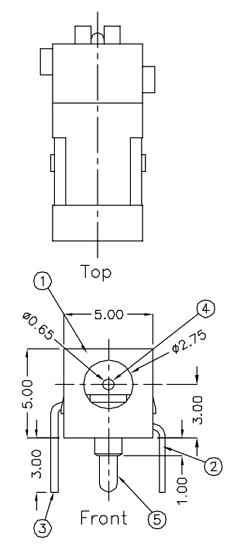

Image and Pinouts:
CP-022-ND datasheet


This is Jack Connector.

Connector Type Jack
Gender Male
Plug/Mating Plug Diameter 0.70mm ID, 2.35mm OD (EIAJ-1)
Number of Positions/Contacts 2 Conductors, 3 Contacts
Internal Switch(s) Single Switch, Normally Closed
Mounting Type Through Hole, Right Angle
Termination Solder
Shielding Unshielded
Color Black
Contact Material Brass
Contact Material – Plating Silver
Housing Color Black
Housing Material Thermoplastic
Operating Temperature -25°C ~ 85°C
Voltage – Rated 16VDC
Current Rating 1A
Other Names CP-022

Other data sheets are available within the file: CP022ND
