D2634 Datasheet PDF – 800V, 8A, NPN Transistor – Sanyo

Part Number: D2634, 2SD2634

Function : NPN Triple Diffused Planar Silicon Transistor

Package: TO-3PMLH Type

Manufacturer: Sanyo Semicon Device

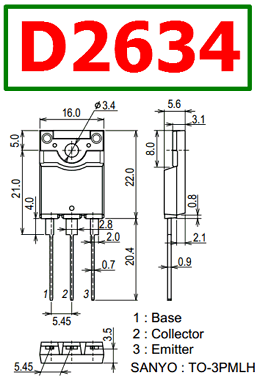

D2634 datasheet pinout


This is NPN Triple Diffused Planar Silicon Transistor.

The D2634 is a NPN bipolar junction transistor (BJT) manufactured by Sanyo, Toshiba. BJTs are widely used as amplifiers and switches in a variety of electronic circuits, including audio amplifiers, power amplifiers, and switching regulators.


1. High speed.

2. High breakdown voltage(VCBO=1500V).

3. High reliability(Adoption of HVP process).

4. Adoption of MBIT process.

5. On-chip damper diode.


D2634 transistor

Absolute Maximum Ratings

1. Collector-to-Base Voltage : VCBO = 1500 V

2. Collector-to-Emitter Voltage : VCEO = 800 V

3. Emitter-to-Base Voltage : VEBO = 6V

4. Collector Current : IC = 8A


1. Color TV Horizontal Deflection Output
