DLPC900 Datasheet – DLP Digital Controller ( PDF )

Part Number: DLPC900

Function: DLP Digital Controller for DLP9000DMD and DLP6500DMD

Package: 516-BGA Type

Manufacturer: Texas Instruments

Image and Pinouts:

DLPC900 datasheet



The DLPC900 is a single scalable DMD (digital micromirror device) controller that supports reliable operation of three high resolution DMD chips:

DLP6500FLQ, DLP6500FYE, and DLP9000FLS. This high performance DMD controller enables programmable, high speed pattern rates for advanced light control especially in industrial, medical and scientific applications.


1. Scalable controller supporting DLP6500, DLP9000, DLP500YX, and DLP670S digital micromirror devices (DMDs) for high-resolution industrial and display applications

2. Easy synchronization with cameras and sensors

3. Fully programmable GPIO and PWM signals

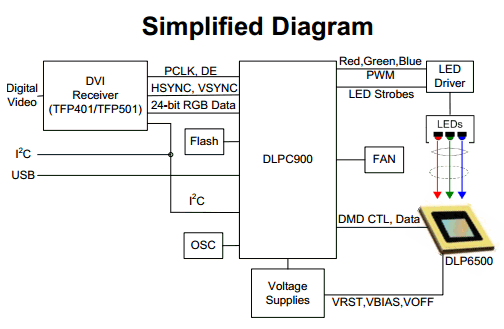

Diagram :



• 3D machine vision and optical inspection
• 3D printing and additive manufacturing
• Ophthalmology
• 3D scanners for limb and skin measurement
• Intelligent and adaptive lighting

Other data sheets are available within the file: DLPC900ZPC, DLPC900ZPC-X


DLPC900 Datasheet PDF Download

DLPC900 pdf
