ICR18650-24E – Lithium-ion Rechargeable Cell – Samsung SDI

Part Number: ICR18650-24E

Function: Lithium-ion Rechargeable Cell

Manufacturer: Samsung SDI

Image :

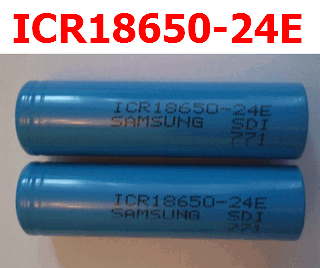

ICR18650-24E rechargeable cell

Description

Nominal Specifications
1. Nominal Capacity : 2400mAh (0.2C, 2.75V discharge)
2. Minimum Capacity : 2350mAh(0.2C, 2.75V discharge)
3. Charging Voltage  : 4.2 ±0.05 V
4. Nominal Voltage : 3.7V
5. Discharge Cut-off Voltage : 2.75V
6. Cell Weight : 47.0g max



Characteristics
1. Standard Charge
This “Standard Charge” means charging the cell with charge current 1200mA and constant voltage 4.2V at 25℃for 3hours.

2. Standard Discharge Capacity
The standard discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 480mA with 2.75V cut-off at 25℃ within 1 hour after the standard charge. Standard Discharge Capacity  ≥2330mAh

3. Initial internal impedance
Initial internal impedance measured at AC 1kHz after rated charge. Initial internal impedance  ≤100mΩ

4. Temperature Dependence of Discharge Capacity
Capacity comparison at each temperature, measured with discharge constant current 480mA and 2.75V cut-off after the standard charge is  as follows.

Outline Dimensions

ICR18650-24E datasheet outline

ICR18650-24E Datasheet PDF
