Part Number: INR18650-25R
Function: Lithium-ion Rechargeable Cell
Height : 64.85 ± 0.15mm, Diameter : 18.33 ± 0.07mm
Manufacturer: Samsung SDI

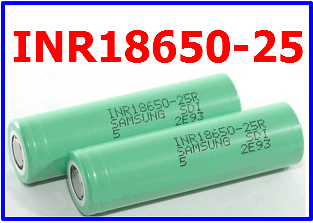

Image :
Characteristics
1. Standard charge
This “Standard charge” means charging the cell CCCV with charge current 0.5CmA (1,250mA), constant voltage 4.2V and 125mA cut-off in CV mode at 25℃ for capacity. .
2. Rapid charge
Rapid charge means charging the cell CCCV with charge current 4A and 100mA cut-off at 25’C
3. Nominal discharge capacity
The standard discharge capacity is the initial discharge capacity of the cell, which is measured with discharge current of 500mA(0.2C) with 2.5V cut-off at 25’C within 1hour after the standard charge.
Nominal discharge capacity ≥ 2,500mAh Which complying to the minimum capacity of IEC61960 standard.
4. Standard rated discharge capacity
The standard rated discharge is the discharge capacity of the cell, which is measured with discharge current of 10A with 2.5V cut-off at 25’C within 1hour after the standard charge.
Standard rated discharge capacity ≥ 2,450mAh
5. Initial internal impedance
Initial internal impedance measured at AC 1kHz after standard charge Initial internal impedance ≤ 18mΩ
6. Temperature dependence of discharge capacity
Capacity comparison at each temperature, measured with discharge constant current 10A and 2.5V cut-off after the standard charge is as follows.

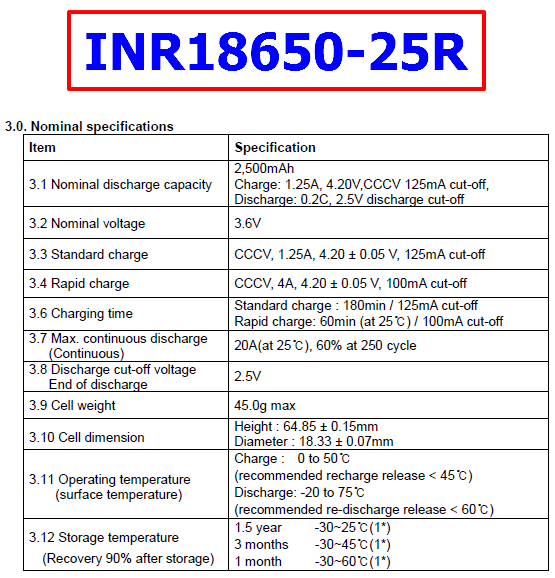

Nominal specifications
INR18650-25R Datasheet
