LC470DUE-SFR1 Datasheet PDF – 47.0” WUXGA TFT LCD – LG

Part Number: LC470DUE-SFR1

Function : 47.0” WUXGA TFT LCD

Package: Module Type

Manufacturer: LG Display


LC470DUE-SFR1 image


  1. Active Screen Size 46.96 inches(1192.78mm) diagonal
  2. Outline Dimension 1067.6(H) X 617.4(V) X 36.5(B) mm (Typ.)
  3. Pixel Pitch 0.5415 mm x 0.5415 mm
  4. Pixel Format 1920 horiz. by 1080 vert. Pixels, RGB stripe arrangement
  5. Color Depth 8bit, 16.7Million colors
  6. Luminance, White 300 cd/m2 (Center 1point ,Typ.)
  7. Viewing Angle (CR>10) Viewing angle free ( R/L 178 (Min.), U/D 178 (Min.))
  8. Power Consumption Total 85.92W (Typ.) [Logic= 6.02W, LED only= 79.9W (IF_cathode=400mA)]
  9. Weight 9.2 kg (Typ.)

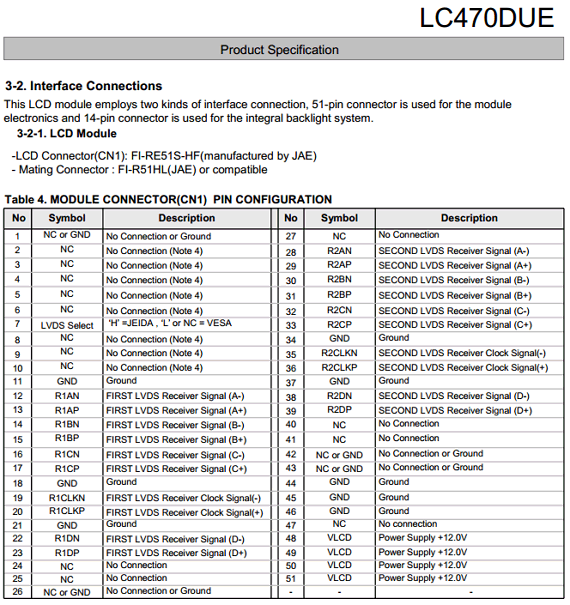

LC470DUE-SFR1 datasheet pinout


The LC470DUE-SFR1 is a Color Active Matrix Liquid Crystal Display with an integral Light Emitting Diode (LED) back light system. The matrix employs a- Si Thin Film Transistor as the ac tive element. It is a transmissive display type which is operatingin the normally black mode. It has a 46.96 inch diagonally measured active display area with WUXGA resolution (1080 vertical by 1920 horizontal pixel array). Each pixel is divided into Red, Green and Blue sub-pixels or dots which are arrayed in vertical stripes. Gray scale or the luminance of the sub-pixel color is determined with a 8-bit gray scale signal for each dot. Therefore, it can present a palette of more than 16.7Million colors.

Other data sheets are available within the file: LC470DUE
