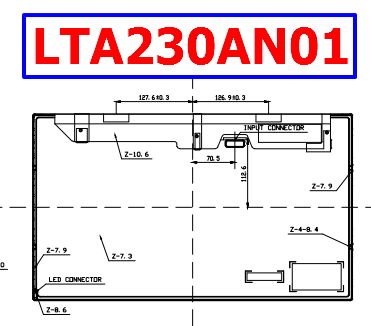

LTA230AN01 Datasheet – 23 inch TFT LCD Module

Part Number: LTA230AN01

Function: TFT LCD Model ( 23 Inch, 1366×768 pixel )

Manufacturer: Samsung


LTA230AN01 datasheet lcd samsung


1. Module Size : 534.0 (H) x 311.8 (V)
2. Weight : 2100 g
3. Number of Pixels : 1366 x 768 pixel
4. Pixel Arrangement : RGB vertical stripe


The LTA230AN01 is the one of liquid crystal display devices(LCD) that uses an amorphous silicon TFT(Thin Film Transistor) as switching components and a color active matrix. This model is composed of a TFT LCD panel, a driver circuit, and a back-light unit. This 23.0” model has a resolution of 1366 x 768 pixels and can display up to 16.7Million colors with the wide viewing angle of 89° or higher in all directions. [ … ]

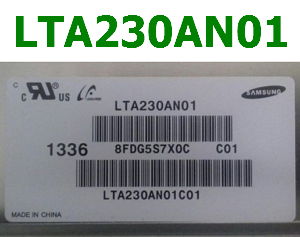

LTA230AN01 TFT LCD Label


1. RoHS compliance(Pb-Free)
2. High contrast ratio & aperture ratio with the wide color gamut
3. SVA(Super Vertical align) mode
4. Wide Viewing angle(± 178°)
5. High speed response
6. HD resolution(16:9)
7. Low Power consumption
8. wLED 1side edge BLU
9. DE(Data enable) mode
10. The interface(1pixel/clock) of 1ch LVDS(Differential signaling with a low voltage)


1. Home-alone Multimedia TFT-LCD TV
2. High Definition TV

LTA230AN01 Datasheet
