M74HC698 Datasheet PDF – CMOS Up/Down Decade Counter

Part Number: M74HC698

Function: CMOS Up / Down Decade Counter / Register

Package: DIP 20 Pin Type

Manufacturer: STMicroelectronics

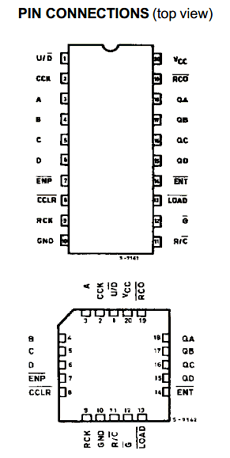

Image and Pinouts:

M74HC698 datasheet


The M74HC699, M74HC698 are high speed CMOS up/down counters fabricated with silicon gate C2MOS technology. They achieve the high speed operation similar to equivalent LSTTL while maintaining the CMOS low power dissipation. The HC696/698 are BCD DECADE COUNTER, and the HC697/699 are 4-BIT BINARY COUNTER. Both devices have register. They count on the positive edge of the counter clock input (CCK) when selected by the ”Counter Mode”. If the input U/D is held ”H”, the internal counter counts up, and held ”L”, counts down.

The counter features enable P and enable T and a ripple-carry output for easy expansion. the
register/counter select input, R/C, selects the counter when low or the register when high for the
three state outputs, QA, QB, Qc and QD.


1. High Speed : f MAX = 50 MHz (Typ.) at Vcc = 5 V

2. Low Power Dissipation : Icc = 4 uA (Max.) at Ta = 25’C

3. High Noise Immunity : Vnih = Vnil = 28% Vcc (Min.)

4. Wide Operating Voltage Range : Vcc(OPR) = 2V to 6 V


Other data sheets are available within the file: M74HC696M, 54HC697, 54HC698, 54HC699, 74HC696

M74HC698B1R, M74HC698F1R, M74HC698M1R, M74HC698C1R
