MCP1257 Datasheet PDF – Charge Pump DC/DC Converter

Part Number: MCP1257

Function: Regulated 3.3V, Low-Ripple Charge Pump DC/DC Converter

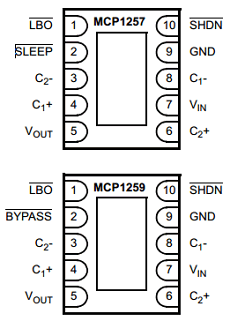

Package: SMD 10 Pin Type

Manufacturer: Microchip Technology


MCP1257 datasheet



The MCP1256, MCP1257, MCP1258 and MCP1259 are inductorless, positive regulated charge pump DC/DC converters. The devices generate a regulated 3.3V output voltage from a 1.8V to 3.6V input. z

The devices are specifically designed for applications operating from 2-cell alkaline, Ni-Cd, or Ni-MH batteries or by one primary lithium MnO2 (or similar) coin cell battery.


• Inductorless 1.5x, 2x Boost DC/DC Converter

• Output Voltage: 3.3V

• High Output Voltage Accuracy : – ±3.0% (VOUT Fixed)

• Output Current Up To 100 mA

• 20mVPP Output Voltage Ripple

• Thermal Shutdown and Short Circuit Protection

• Uses Small Ceramic Capacitors

• Switching Frequency: 650 kHz

Other data sheets are available within the file:

MCP1256, MCP1256-EMF, MCP1256-EUN, MCP1256T-EMF, MCP1256T-EUN
