MKP62 Datasheet – Box-type Film Suppression Capacitor

Part Number: MKP62

Function: Metallized Polypropylene Film Interference Suppression Capacitor

Package: Box-type

Manufacturer: Xiamen Faratronic ( http://www.faratronic.com.cn/ )


mkp62-film-capacitor

Description

The MKP62 is Box-type Film Suppression Capacitor.

A film capacitor is a type of capacitor that uses a thin insulating film, usually made of polyester, polycarbonate, polypropylene, or similar materials, as the dielectric medium. The film is typically rolled or folded into a compact shape and then coated with metal electrodes, which are separated by the dielectric film.

Film capacitors are known for their stability, low dissipation factor, and high insulation resistance, making them well-suited for a wide range of applications, including coupling and decoupling, power factor correction, signal filtering, and more. They are also available in a variety of sizes and voltage ratings, making them suitable for use in everything from small electronic devices to large industrial systems.

Features

1. Metallized polypropylene structure

2. Withstanding overvoltage stressing

3. Excellent active and passive flame resistant abilities

4. Widely used in across-the-line, interference suppression circuit, etc

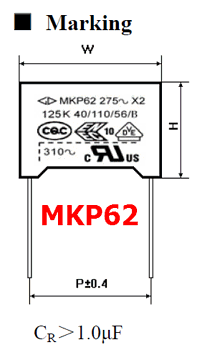

Pinouts:

mkp62-datasheet-marking

Specifications

1. Climatic Category/Passive Flammability Category : 40/110/56/B ( Class X2 )

2. Operating Temperature Range : -40℃ ~ +110℃

3. Rated Voltage (UR) : 275/305Vac(ENEC/CQC), 250Vac(UL1414) , 310Vac(UL1283)

4. Maximum continuous DC voltage : 630Vdc

5. Capacitance Range : 0.0010μF~10.0μF

6. Capacitance Tolerance : ±10%(K), ±20%(M)
