NDL7408P Datasheet PDF – 1,310nm, Laser Diode

Part Number: NDL7408P

Function: 1,310 nm InGaAsP STRAINED MQW DC-PBH LASER DIODE COAXIAL MODULE WITH SINGLE MODE FIBER

Manufacturer: NEC (Renesas Technology)

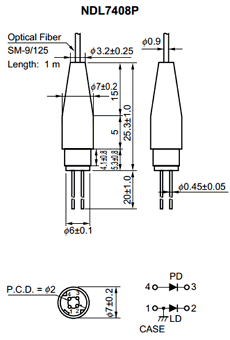

Image and Pinouts:

NDL7408P datasheet



Description

NDL7408P Series is a 1,310 nm laser diode coaxial module with single mode fiber.

It has a strained Multiple Quantum Well (st-MQW) structure and a built-in InGaAs monitor photo diode. It is recommended for junction or access network systems. The series is available in two types of output power: 1.0 mW and 0.2 mW.

Features

1. Center wavelength λC = 1 310 nm

2. Two types of output power : 1.0 mW (NDL7408PK Series) 0.2 mW (NDL7408PL Series)

3. Low threshold current lth = 12 mA TYP. @TC = 25 °C

4. High cut-off frequency fC = 2.0 GHz

5. InGaAs monitor PIN-PD

6. Wide operating temperature range : -40 to +85 °C

7. Based on Bellcore TA-NWT-000983





NDL7408P Datasheet PDF Download


NDL7408P pdf

Other data sheets are available within the file: NDL7408, 7408P, NDL7408P1K, NDL7408P1KC, NDL7408P1KD
