OB2268AP Datasheet PDF – Current Mode PWM Controller

Part Number: OB2268AP

Function: Current Mode PWM Controller

Package: SOP-8 and DIP-8 Type

Manufacturer: LiteOn Technology

Pinouts:

OB2268AP datasheet



Description

OB2268AP, OB2269 is a highly integrated current mode PWM control IC optimized for high performance, low standby power and cost effective offline flyback converter applications in above 20W power level.

PWM switching frequency at normal operation is externally programmable and trimmed to tight range. At no load or light load condition, the IC operates in extended ‘burst mode’ to minimize switching loss. Lower standby power and higher conversion efficiency is thus achieved.

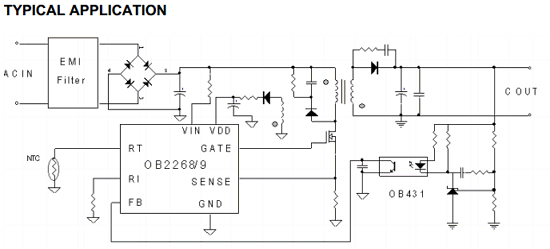

Application Circuits :

components

Features

1. Extended Burst Mode Control For Improved Efficiency and Minimum Standby Power Design

2. Audio Noise Free Operation

3. External Programmable PWM Switching Frequency

4. Internal Synchronized Slope Compensation

5. Low VIN/VDD Startup Current(4uA) and Low Operating Current (2.3mA)

6. Leading Edge Blanking on Current Sense Inp



OB2268AP Datasheet PDF Download


OB2268AP pdf

Other data sheets are available within the file: OB2268, 0B2268AP ,OB2268APV, OB2269, OB2269CP
