R76MN3560 Datasheet PDF – Polypropylene Capacitor – Kemet

Part Number: R76MN3560R, R76 Series

Function: Polypropylene Capacitor

Package: Film, Radial 2 Pin Type

Manufacturer: KEMET

Image :

R76MN3560--3-- datasheet



Description

The R76 Series is constructed of polypropylene film and double metallized polyester film as electrodes with radial leads of tinned wire. The radial leads are electrically welded to the metal layer on the ends of the capacitor winding. The capacitor is encapsulated in a self-extinguishing solvent resistant plastic case with thermosetting resin material meeting the UL 94V–0 requirements.

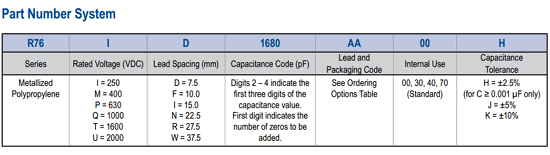

components

General Technical Data

1. Dielectric : polypropylene film.
2. Plates : double sided metallized polyester film.
3. Winding : non-inductive type.

Other data sheets are available within the file: 76MN3560–3–, R76MN3560–3–
