SC1S311 Datasheet PDF – SSC1S311 – Sanken

0. Part Number: SSC1S311, Sanken Electroinc.

1. Scope
The present specifications shall apply to a monolithic IC type SSC1S311 for Switching regulators.

2. Outline
(1) Type : Monolithic IC
(2) Structure : Plastic mold package (Transfer mold)
(3) Applications: Switching regulators

SSC1S311 is marking SC1S311

SC1S311 Image


3. Absolute maximum ratings
4. Electrical characteristics
5. Block diagram :

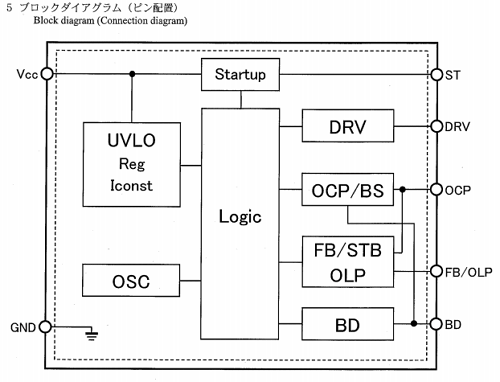

SSC1S311 Block Diagram
6. Example application circuit
7. Package outline
8. Packing specifications
9. Cautions and warnings

Marking Code :
SC1S311

SC1S311 SOP8

Package: SMD 8 Pin

( Drvie FET )

Application Circuits :

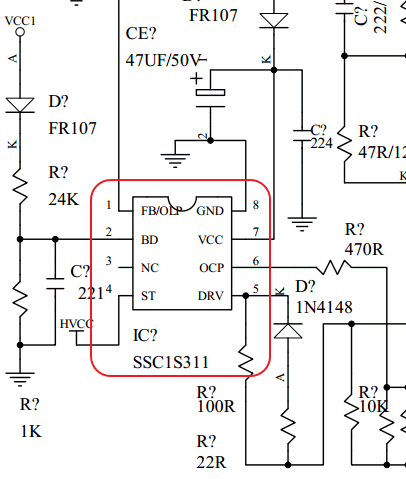

SSC1S311-Circuit

Datasheet PDF :  [ SC1S311.PDF, SSC1S311.PDF ]
