SN65LVDS95-EP Datasheet PDF – LVDS SerDes Transmitter

Part Number: SN65LVDS95-EP

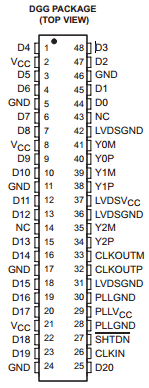

Package: TSSOP 48 Pin Type

Manufacturer: Texas Instruments


SN65LVDS95-EP datasheet



The SN65LVDS95-EP, SN65LVDS95 LVDS serdes (serializer/deserializer) transmitter contains three 7-bit parallel-load serial-out shift registers, a 7×clock synthesizer, and four low-voltage differential signaling (LVDS) line drivers in a single integrated circuit. These functions allow 21 bits of single-ended LVTTL data to be synchronously transmitted over 4 balanced-pair conductors for receipt by a compatible receiver, such as the SN65LVDS96.



1. Controlled Baseline
− One Assembly/Test Site, One Fabrication Site

2. Enhanced Diminishing Manufacturing Sources (DMS) Support

3. Enhanced Product-Change Notification

4. Operates From a Single 3.3-V Supply and 250 mW (Typ)

5. Bus Pins Tolerate 6-kV HBM ESD

6. Consumes <1 mW When Disabled

7. Wide Phase-Lock Input Frequency Range 20 MHz to 68 MHz

8. No External Components Required for PLL


SN65LVDS95-EP Datasheet PDF Download

SN65LVDS95-EP pdf

Other data sheets are available within the file:

65LVDS95EP, SN65LVDS95P, SN65LVDS95DGGREP, V62/04643-01XE
