STR-X6759 Datasheet – Quasi-Resonant Switching Regulator

Part Number: STR-X6759 Series

Function: Off-Line Quasi-Resonant Switching Regulator

Package: TO-3P-7 Pin Type

Manufacturer: Sanken Electric co.,ltd.

Images :
STR-X6759 datasheet


The Regulators series integrates a quasi-resonant control IC and a MOSFET with avalanche guarantee. In normal operation, the device provides high efficiency and low EMI noise with bottom-skip quasi-resonant operation during light output loads. Low power consumption is also achieved by Auto-standby mode (not available in the STR-X6729, STR-X6759N, or STR-X6768N) or manual standby mode (external trigger).

The device is supplied in a seven-pin fully-molded TO-3P style package, which is suitable for downsizing and stan dardizing of an SMPS by reducing external component count and simplifying circuit design.

STR-X6759 Line up

Str x6759 equivalent

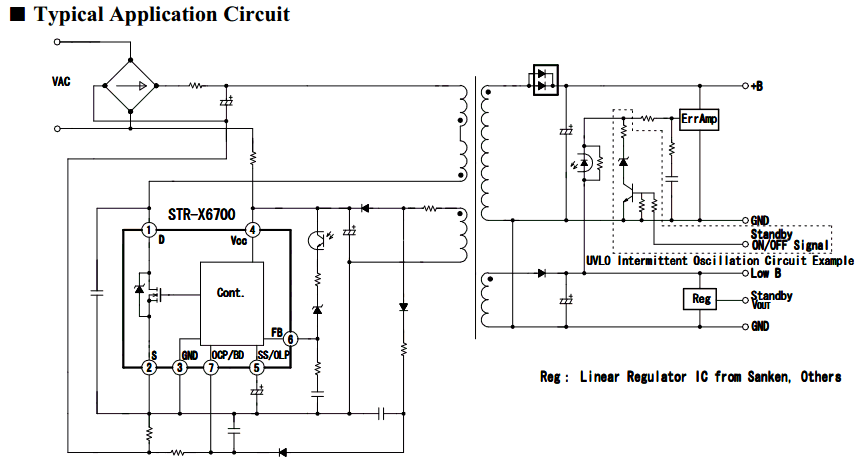

Typical Applications Circuit

STRX6759 Circuit

Other data sheets are available within the file: STR-X6700, STR-X6729, STR-X6737, STR-X6757, STRX6759
