Part Number: TA7698AP
Manufacturer: Toshiba
Package: DIP 42 Pin Type
Function: VIDEO-CHROMA-DEFLECTION SYSTEM FOR A COLOR TELEVISION
Image:
Description
The TA7698AP combines a PAL/NTSC Video-Chroma subsystem and a Deflection combination on a single monolithic integrated circuit to provide a PAL or PAL/NTSC color television.
This device includes a Video amplifier, PAL and NTSC color demodulator these are designed to provide color differential signal outputs, and improved Sync-separator, Horizontal oscillator with saw tooth wave type AFC, Horizontal pre-driver with X’ray protection circuit, Vertical oscillator and Vertical pre-driver in a 42 leads dual-in-line type plastic package.

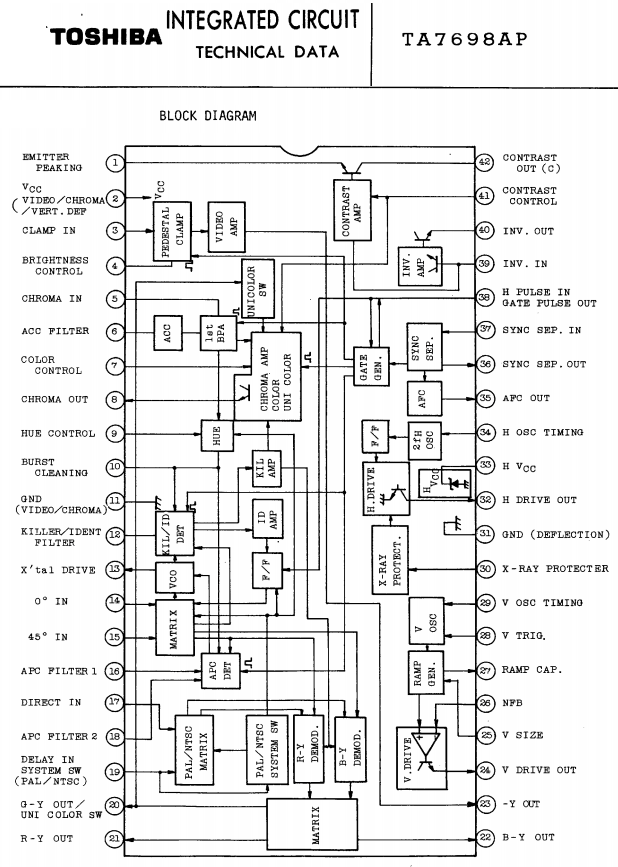

Pinout
Features
1. Internal Y/C separator circuit
2. NTSC matching for Composite
3. Internal one systems input for analog RGB for NTSC/PAL
4. Internal count down circuit at H,V
5. Internal enhancer circuit
6. Internal Side black control circuit
7. Internal PWM control circuit
