TA8659AN Datasheet PDF – Video-Chroma-Deflection IC

Part Number: TA8659AN

Function: Multi-Color Video-Chroma-Deflection

Package: DIP 64 Pin Type

Manufacturer: Toshiba

Images :

TA8659AN datasheet



Description

The TA8659AN is an NTSC/PAL/SECAM video-chroma-deflection sub-system with the teletext interface circuit. The TA8659AN includes all of the fuctions required to realize a multi-color CTV in conjunction with a PIF/SIF IC, in a 64 leads shrink type dual-in-line plastic package.

Features

1. Forced system selection

2. Automatic system chage by subcarrier detection.

3. Realizes full-automatic multicolor processing in conjunction with the TA8615N system switch, with minimal external components.

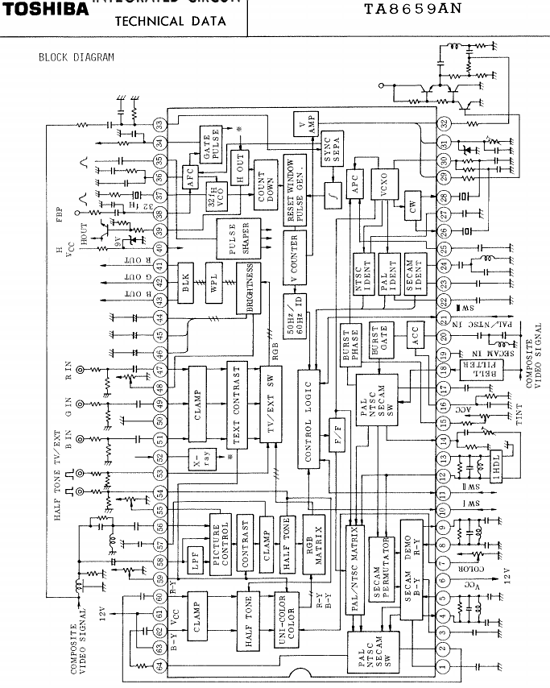

Block Diagram and Pinouts:

components

Functions :

1. Video Section

(1) DC-controlled, 2nd-order differential picture sharpness
(2) Contrast control with uni-color control.
(3) Brightness control.

2. Chroma Section

(1) ACC Circuit
(2) Color control/uni-color control
(3) RGB primary color demodulator outputs
(4) Adjustment-free APC circuit.

Other data sheets are available within the file: TA8659

TA8659AN Datasheet PDF Download


TA8659AN pdf
