HEF4519BP Datasheet PDF – Quadruple 2-input Multiplexer

Posted on by pinout

Part Number: HEF4519BP

Function: Quadruple 2-input Multiplexer

Package: DIP 16 Pin

Manufacturer: Philips Electronics ( https://www.nxp.com/ )

Pinouts:

HEF4519BP datasheet



Description

The HEF4519B provides four multiplexing circuits with common select inputs (SA, SB); each circuit contains two inputs (An, Bn) and one output (On). It may be used to select four bits of information from one of two sources. The HEF4519B cannot be used to multiplex analogue signals. The outputs utilize standard buffers for best performance.

Ordering Information

HEF4519BP(N): 16-lead DIL; plastic (SOT38-1)
HEF4519BD(F): 16-lead DIL; ceramic (cerdip) (SOT74)
HEF4519BT(D): 16-lead SO; plastic (SOT109-1)

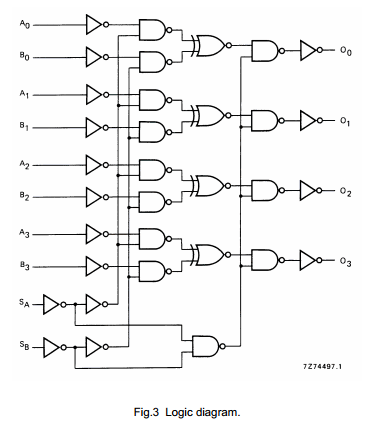

Logic Diagram

components

Application Information

Some examples of applications for the HEF4519B are:

1. 2-input multiplexers.
2.True/complement selectors

Other data sheets are available within the file: HEF4519, HEF4519BD, HEF4519BT, HEF4519BDB, HEF4519BPB

HEF4519BP Datasheet PDF Download

HEF4519BP pdf
