STR-G6351 Datasheet PDF – Switching Regulator – Sanken

Posted on by pinout

Part Number: STR-G6351

Function: Hybrid IC Type Switching Regulator ( LF1129 )

Package: TO-220-5 Pin Type

Manufacturer: Sanken Electric co.,ltd.

STR-G6351 switching regulator

Description

The STR-G6351 is Hybrid IC type  for switching regulator.



Absolute Maximum Ratings ( Ta=25°C )

1. Drain current: IDpeak = 6.8 A

2. Maximum switching current : ID MAX = 2.7 A

3. Input voltage for control part : Vin = 35 V

4. Single pulse avalanche energy : 92 mJ

Block Diagram and Pinout:

STR-G6351 datasheet pinout STRG6351

Reference PDF :

https://www.electronica-pt.com/datasheets/ps/STR-G6351.pdf

STR-G6351 Datasheet PDF

STR-G6351 pdf




Other data sheets are available within the file: G6351, STRG6351

Related articles across the web

KIA7805PI Datasheet PDF – 1A, 5V, Voltage Regulator

Posted on by pinout

Part Number: KIA7805PI, KIA78 Series

Function:  1A, 5V, Voltage Regulator

Package: TO-220 Type

Manufacturer: KEC

Image :

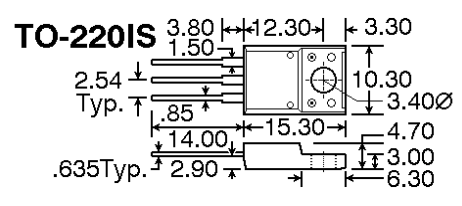

KIA7805PI datasheet



Description

This is 1A, 5V, Three Terminal Positive Voltage Regulator.

Features

1. Internal Thermal Overload Protection.

2. Internal Short Circuit Current Limiting.

3. Output Current up to 1.5A.

4. Satisfies IEC-65 Specification. (International Electronical Commission).

components

Ordering Informations :

KIA7806PI, 7806FP : 6 V
KIA7808PI, 7808FP : 8 V
KIA7809PI, 7809FP : 9 V
KIA7810PI, 7810FP : 10 V
KIA7812PI, 7812FP : 12 V
KIA7815PI, 7815FP : 15 V
KIA7818PI, 7818FP : 18 V
KIA7820PI, 7820FP : 20 V
KIA7824PI, 7824FP : 24 V



components

Other data sheets are available within the file: KIA7806PI, KIA7808PI, KIA7809PI, KIA7810PI

KIA7805PI Datasheet PDF Download

KIA7805PI pdf
