TE28F008B3BA110 Datasheet PDF – 8-Mbit Flash Memory

Part Number: TE28F008B3BA110

Function: Advanced Boot Block 8-Mbit Flash Memory

Package: TSOP 40 Pin Type

Manufacturer: Intel

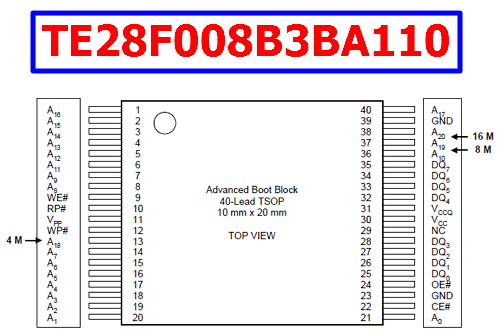

Pinout

TE28F008B3BA110 datasheet

Description

The TE28F008B3BA110 datasheet contains the specifications for the 3 Volt Advanced Boot Block flash memory family, which is optimized for low power, portable systems. This family of products features 1.65 V–2.5 V or 2.7 V–3.6 V I/Os and a low VCC/VPP operating range of 2.7 V–3.6 V for read, program, and erase operations. In addition this family is capable of fast programming at 12 V. Throughout this document, the term “2.7 V” refers to the full voltage range 2.7 V–3.6 V (except where noted otherwise) and “VPP = 12 V” refers to 12 V ±5%. Section 1.0 and 2.0 provide an overview of the flash memory family including applications, pinouts and pin descriptions. Section 3.0 describes the memory organization and operation for these products.

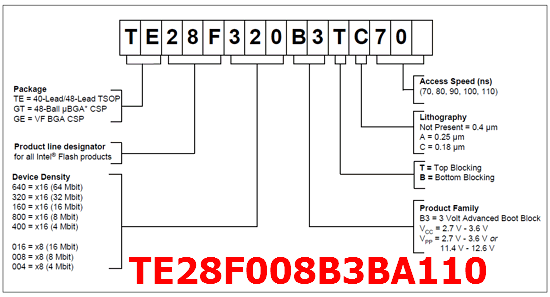

Ordering Information

TE28F008B3BA110 ordering information

The 3 Volt Advanced Boot Block flash memory features :

1. Enhanced blocking for easy segmentation of code and data or additional design flexibility

2. Program Suspend to Read command

3. Maximum program and erase time specification for improved data storage.

Other data sheets are available within the file: TE28F008B3TA90, TE28F008B3BA90, TE28F008B3TA110
