TK11123MIL Datasheet PDF – 2.3V, Voltage Regulator

Part Number: TK11123MIL

Function: 2.3V, VOLTAGE REGULATOR WITH ON/OFF SWITCH

Package: SOT-23L-6 Type

Manufacturer: Toko America Inc

Image and Pinouts:

TK11123MIL datasheet

Description

The TK11123MIL is a low dropout linear regulator with a built in electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The device is in the “on” state when the control pin is pulled to a logic high level. An external capacitor can be connected to the noise bypass pin to lower the output noise level to 30 µVrms.



Features

1. High Voltage Precision at ±2.0% or ±60 mV

2. Active High On/Off Control

3. Very Low Dropout Voltage (85 mV at 30 mA)

4. Very Low Noise

5. Miniature Package (SOT-23L-6)

6. Internal Thermal Shutdown

7. Short Circuit Protection

8. Excellent Ripple Rejection (70 dB @ 1 kHz)

9. Reverse Bias Protection

Ordering Information :

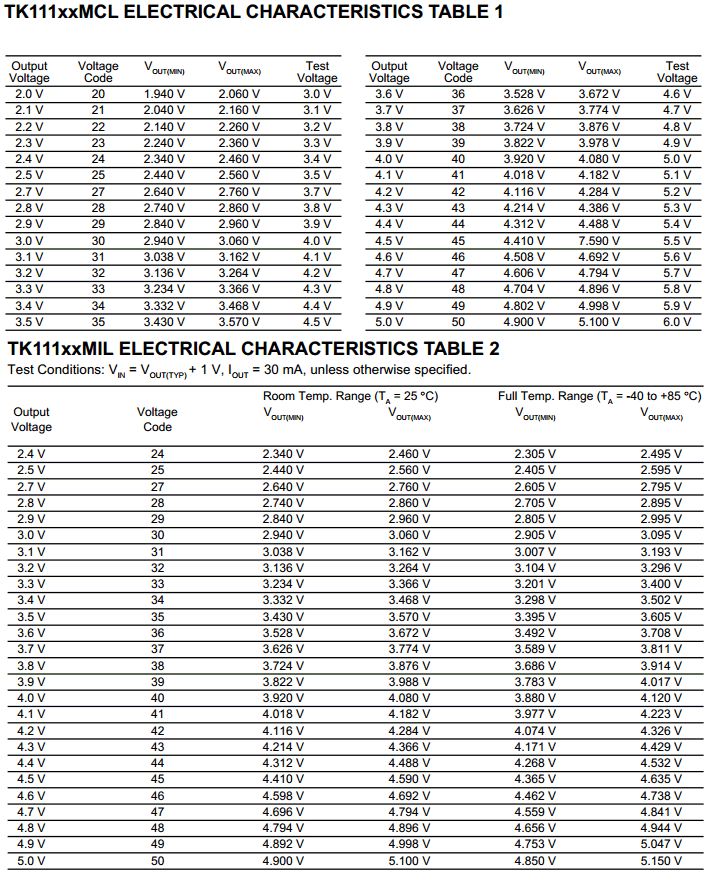

components

Applications

1. Battery Powered Systems

2. Cellular Telephones

3. Pagers

4. Personal Communications Equipment

5. Portable Instrumentation

6. Portable Consumer Equipment

7. Radio Control Systems

8. Toys



Other data sheets are available within the file:

TK11120MCL, TK11120MIL, TK11121MCL, TK11121MIL, TK11122MCL
