TL074 Datasheet – JFET-Input Operational Amplifier – TI

Part Number: TL074, TL074CN

Function : LOW-NOISE JFET-INPUT OPERATIONAL AMPLIFIERS

Package: PDIP, SOIC 14 Pin Type

Manufacturer: Texas Instruments


tl074-jfet-operational-amplifier

Description

The TL07xx, TL074 JFET-input operational amplifier family is designed to offer a wider previously developed operational amplifier family. Each of these JFET-input operational amplifiers incorporates well-matched, high-voltage JFET and bipolar transistors in a monolithic integrated circuit. The devices feature high slew rates, low-input bias and offset currents, and low offset-voltage temperature coefficient. The low harmonic distortion and low noise make the TL07xseries ideally suited for high-fidelity and audio pre-amplifier applications. Offset adjustment and external compensation options are available within the TL07x family.

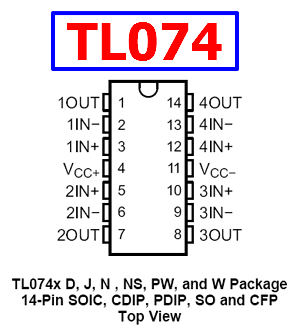

Pinout

tl074-datasheet-pinout



Features

1. Low Power Consumption
2. Wide Common-Mode and Differential Voltage Ranges
3. Low Input Bias and Offset Currents
4. Output Short-Circuit Protection
5. Low Total Harmonic Distortion: 0.003% Typical
6. Low Noise Vn = 18 nV/√Hz Typ at f = 1 kHz
7. High-Input Impedance: JFET Input Stage
8. Internal Frequency Compensation
9. Latch-Up-Free Operation
10. High Slew Rate: 13 V/μs Typical
11. Common-Mode Input Voltage Range ncludes VCC+

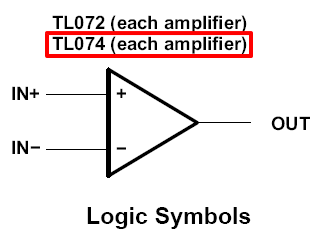

Logic Symbols

tl074-logic-symbols
