TPS70918 Datasheet PDF – Low-dropout Voltage Regulator

Part Number: TPS70918

Function: 150-mA, 30-V, 1-µA Iq Voltage Regulator with Enable

Package: SOT-23-5 Pin Type, WSON 6 Pin Type

Manufacturer: Texas Instruments

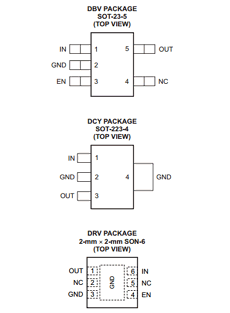

Pinouts:

TPS70918 datasheet



Description

The TPS709xx series of linear regulators are ultralow, quiescent current devices designed for power sensitive applications. A precision band-gap and error amplifier provides 2% accuracy over temperature.

Quiescent current of only 1 µA makes these devices ideal solutions for battery-powered, always-on systems that require very little idle-state power dissipation. These devices have thermal-shutdown, current-limit, and reverse-current protections for added safety.

These regulators can be put into shutdown mode by pulling the EN pin low. The shutdown current in this mode goes down to 150 nA, typical.

The TPS709xx series is available in SON-6, SOT-23-5, and SOT-223-4 packages.

Features

1. Reverse current protection

2. Low ISHUTDOWN: 150 nA

3. Input voltage range: 2.7 V to 30 V

4. Supports 200-mA peak output

5. 2% accuracy over temperature

6. Available in fixed-output voltages: 1.2 V to 6.5 V



Official Site : https://www.ti.com/product/tps70918

TPS70918 Datasheet PDF Download


TPS70918 pdf

Other data sheets are available within the file:

TPS70912, TPS70912DBVR, TPS70912DBVT, TPS70912DRVR, TPS70912DRVT
