What is TSUMV59XUS?

It is a highly integrated single chip solution for analog TV systems supporting TV channel and various multi-media decoding. It is manufactured by Mstar Semiconductor which is a leading TV SoC provider in the TV industry.

Function: Highly integrated single chip for TV

Package: LQFP 128 Pin Type

Manufacturer: Mstar, Wellchip

Package: QFP128   ROHS



The TSUMV59XUS is a highly integrated TV SoC solution for advanced analog television platform.  Integrating latest advanced technologies from Mstar Semiconductor, the world leading TV SoC provider in TV industry, This Device provides the most cost-efficient solution for multimedia TV application with creative and attractive features exclusivelypresented.

In order to achieve the lowest BOM cost in a multi-media TV platform, TSUMV59XUS integrates TV/multi-media all-purpose AV decoder, VIF demodulator, and advanced Sound/Video processors into a single device. This not only reduced the overall BOM significantly, but also facilitates the design of originally-complicated TV systems for developers. In addition, the memory-embedded solution by TSUMV59 can reduce the excessive work of memory interface routing on board and the risk of memory performance degradation while powering cost-down in the total system.


1.  Analog TV Front-End Demodulator
2.  Multi-Standard A/V Format Decoder
3.  The MStarACE-6 Video Processor
4.  HomeTheater Sound Processor
5.  Embedded Memory foroptimized BOM cost
6.  Transport-Stream  Input  for  Extended  DTV System
7.  Peripherals and Low-Power Standby Mode

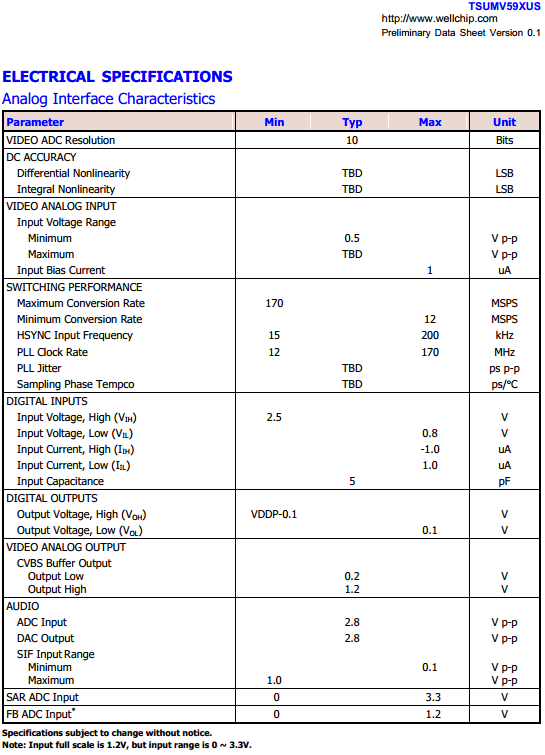

TSUMV59XUS Datasheet

High Performance Micro-processor

1. High speed/performance 32-bit RISC CPU
2. Two full duplex UARTs
3. Supports USB and ISP programming
4. DMA Engine

MPEG-2 Video Decoder

1. ISO/IEC 13818-2 MPEG-2 video MP@HL
2. Automatic frame rate conversion
3. Supports resolution up to HDTV (1080i, 720p) and SDTV

MPEG-4 Video Decoder

1. ISO/IEC 14496-2 MPEG-4 ASP video decoding
2. Supports resolutions up to HDTV (1080p@30fps)
3. Supports DivX1 Home Theater & HD profilesOptional
4. Supports VC-1, FLV video format decoding

H.264 Decoder

1. ITU-T H.264, ISO/IEC 14496-10 (main and high profile up to level 4.1) video decoding
2. Supports resolutions for all DVB, ATSC, HDTV, DVD and VCD
3. Supports resolution up to 1080p@30fps
4 Supports CABAC and CAVLC stream types
5. Processing of ES and PES streams, extraction and provision of time stamps
6. Up to 40 Mbits bitrate (Blu-ray spec.)
