UP6161 Datasheet – Buck-PWM and Linear-Regulator Controller

Part Number: UP6161

Function: Synchronous-Buck-PWM and Linear-Regulator Controller

Package: SOP-14, QFN3x3-16 Type

Manufacturer: uPI Semiconductor ( www.upi-semi.com )

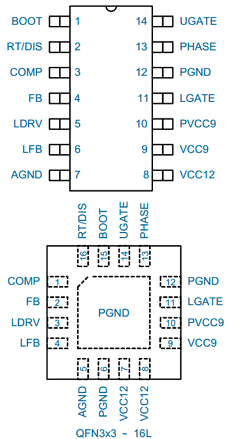

Pinouts:

UP6161 datasheet

Description

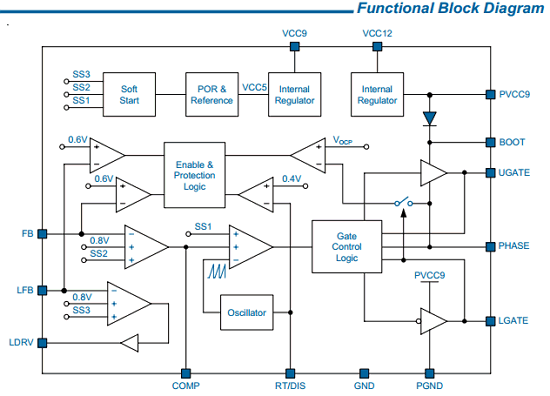

components

The uP6161 integrates a high performance synchronous rectified buck controller and a linear-regulator controller. This part works with a single +12V supply voltage and delivers two high quality output voltages for both processing unit and memory unit. An internal linear regulator provides optimum 9V drive voltage for efficiency and thermal management.



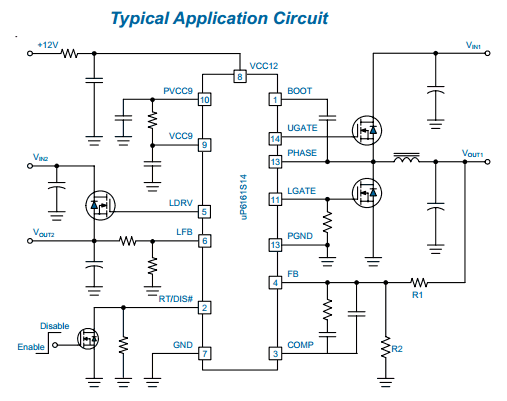

components

components

UP6161 Datasheet PDF Download

UP6161 pdf

Other data sheets are available within the file: UP6161Q, UP6161S14
