V216BG1-LE1 Datasheet – 21.6 inch LCD Module ( PDF )

Part Number: V216BG1-LE1

Function: 21.6” TFT Liquid Crystal Display module with LED Backlight unit

Package: LCD Module ( 1366 horiz. by 768 vert. )

Manufacturer: CHIMEI InnoLux

Images:

V216BG1-LE1 LCD Module

Description

The V216BG1-LE1 is a 21.6” TFT Liquid Crystal Display module with LED Backlight unit and a 30pin 1ch-LVDS interface. This module supports 1366 x 768 (16:9 wide screen) formats and can display 16.7M colors (6-bit+FRC colors). The converter for backlight is not built-in.

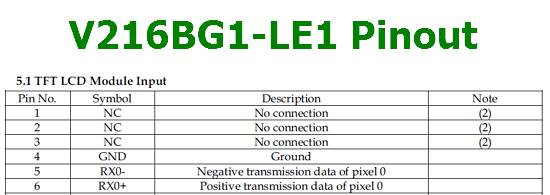

Pinout
V216BG1-LE1 pinout

General Features

1. Excellent brightness (250 nits)
2. Contrast ratio (1000:1)
3. Fast response time (5 ms)
4. Color saturation (NTSC 72%)
5. 1366 x 768 pixels (16:9 wide screen) resolution
6. DE (Data Enable) only mode
7. LVDS (Low Voltage Differential Signaling) interface
8. Viewing angle : 170(H)/160(V) (CR>10) TN technology
9. RoHS compliance

[…]

APPLICATION :
1. Standard Living Room TVs
2. MFM Application

GENERAL SPECIFICATIONS :

1. Active Area : 477.417(H) x 268.416 (V) (21.6” diagonal) mm
2. Bezel Opening : Area 481.5 (H) x 272.5 (V) mm
3. Driver Element : a-si TFT active matrix
4. Pixel Number : 1366 x R.G.B. x 768 pixel
5. Pixel Pitch(Sub Pixel) : 0.1165 (H) x 0.3495 (V) mm
6. Pixel Arrangement : RGB vertical stripe
7. Display Colors : 16.7M color
Display Operation Mode : Transmissive mode / Normally white

BACKLIGHT UNIT :
The pin configuration for the housing and the leader wire is shown in the table below.

Pin

Description

1 Cathode of LED string
2 Cathode of LED string
3 VLED
4 VLED
5 Cathode of LED string
6 Cathode of LED string

V216BG1-LE1 Datasheet
