V236H1-L01 Datasheet PDF – 23.6 inch TFT LCD – CHI MEI

Part Number: V236H1-L01

Function: 23.6 inch TFT Liquid Crystal Display module

Active Area : 521.28(H) x 293.22(V) (23.547” real diagonal) mm

Bezel Opening Area : 525.22 (H) x 297.22 (V) mm

Manufacturer: Chi Mei Optoeletronics

Image:

V236H1-L01 Image



Description

The V236H1-L01 is a 23.6” TFT Liquid Crystal Display module with 2 U-type CCFL Backlight unit and 30 pins 2ch-LVDS interface. This module supports 1920 x 1080 Full HD mode and can display up to 16.7M colors.  The inverter module for Backlight is not built in.

V236H1-L01 Spec

Features

1. Extra-wide viewing angle.

2. High contrast ratio.

3. Fast response time.

4. High color saturation.

5. Full HD (1920 x 1080 pixels) resolution.

6. DE (Data Enable) only mode.

7. LVDS (Low Voltage Differential Signaling) interface.

8. RoHS compliance.

9. TCO03 compliance

10 Aspect ratio: 16:9

Pinouts:

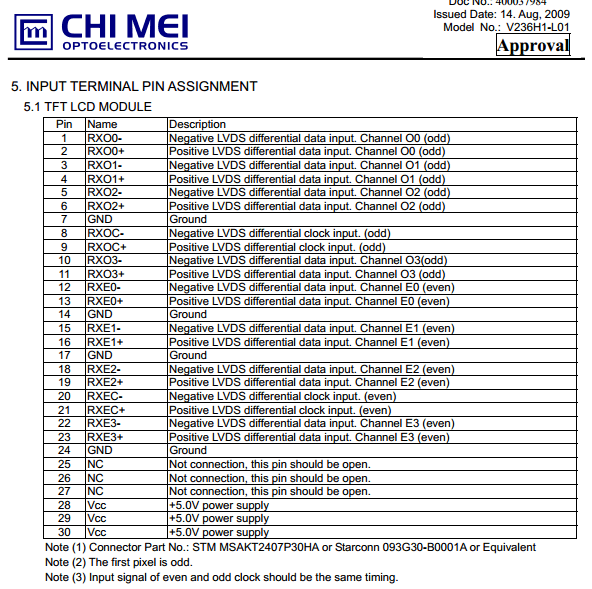

V236H1-L01 Pinout



V236H1-L01 Datasheet PDF
