WME128K8-XXX Datasheet PDF – 128K x 8, CMOS EEPROM

Part Number: WME128K8-XXX

Function: 128K x 8 CMOS monolithic EEPROM / Low Power CMOS Operation

SMD  : 5962-96796

Package: DIP, CSOJ 32 Pin Type

Manufacturer: Microsemi Corporation

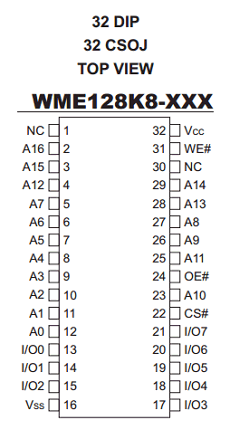

Image and Pinouts:

WME128K8-XXX datasheet

1. A0-16 Address Inputs
2. I/O0-7 Data Input/Output
3. CS# Chip Selects
4. OE# Output Enable
5. WE# Write Enable
6. VCC +5.0v Power
8. VSS Ground

Description

This is 128K x 8, CMOS Monolithic EEPROM.

Features

1. Read Access Times of 125, 140, 150, 200, 250, 300ns

2. Commercial, Industrial and Military Temperature Ranges

3. MIL-STD-883 Compliant Devices Available

4. Write Endurance 10,000 Cycles

5. Low Power CMOS Operation

6. Automatic Page Write Operation

(1) Internal Address and Data Latches for 128 Bytes

(2) Internal Control Timer

7. Page Write Cycle Time 10ms Max.

8. Data Polling for End of Write Detection

9. Hardware and Software Data Protection

10. TTL Compatible Inputs and Outputs



WME128K8-XXX Datasheet PDF Download


WME128K8-XXX pdf

Other data sheets are available within the file:

WME128K8, WME128K8-120CC, WME128K8-120CCA,

WME128K8-120CI, WME128K8-120CIA
