NTC-10D20 Datasheet – 10 Ohm, 20 mm, NTC Thermistor

Part Number: NTC-10D20, NTC10D-20

Function: PT series NTC thermistor

Package: Disk Type

Manufacturer: EXSENSE Electronics Technology


NTC-10D20 NTC thermistor

Description

The NTC-10D20 is 20mm, 10Ω, NTC thermistor.

PT series NTC thermistor has to be connected in series to the power source circuit to avoid the surge current at the instant when the electronic circuits are turned on. The device can effectively suppress the surge current, and its resistance and power consumption can be greatly reduced after that through the continuous effect of the current so as not to affect the normal work current. Therefore the Power NTC thermistor is the most convenient and efficient instrument to curb the surge current and protect the electronic devices from being damaged.

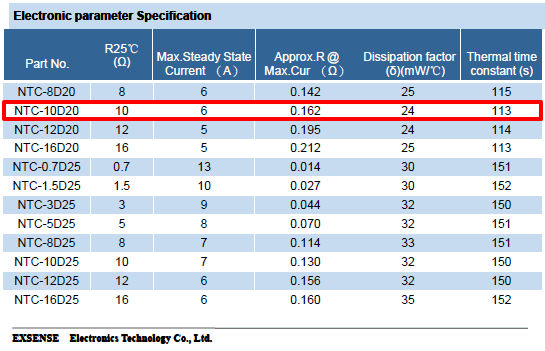

Electronic parameter Specification

NTC-10D20 datasheet specification

Features

1. Strong power and strong capability of surge current protection.

2. Characteristics Fast response to the rapidly surge.

3. Big material constant(B value),Small remain resistance.

4. High reliability.

5. Integral series, Extensive operating range



Part Informations

NTC-10D-20 Thermistor





NTC-10D20 Datasheet PDF
