12F80 Datasheet – 12A, 800V, Recovery Diode – IR ( PDF )

Part Number: 12F80

Description

12A, 800V,  STANDARD RECOVERY DIODE, RECTIFIER

Package: DO-4 ( DO-203AA ) Type

Manufacturer: International Rectifier

Features

1. High surge current capability
2. Avalanche types available
3. Stud cathode and stud anode version
4. Wide current range
5. Types up to 1200V V RRM

Typical Applications

1. Battery charges
2. Converters
3. Power supplies
4. Machine tool controls

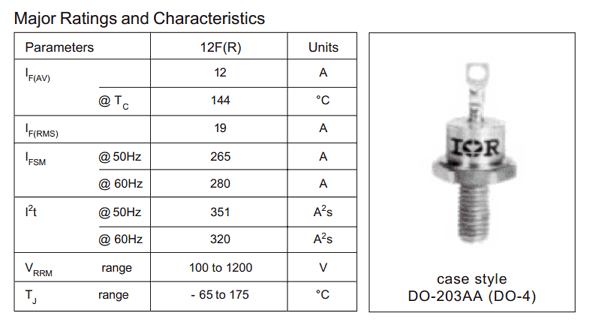

12F80 Datasheet
