2SC2233 Datasheet – 60V, 4A, NPN Transistor – Mospec

Part Number: 2SC2233

Function: 4 A, NPN silicon power transistor / 60 Volts / 40 Watts

Package: TO-220 Type

Manufacturer: Mospec Semiconductor

Image and Pinouts:

2SC2233 datasheet



Description

This is 60V, 4A, NPN Silicon Power Transistor.

The 2SC2233 designed for use in TV horizontal deflection output applications.

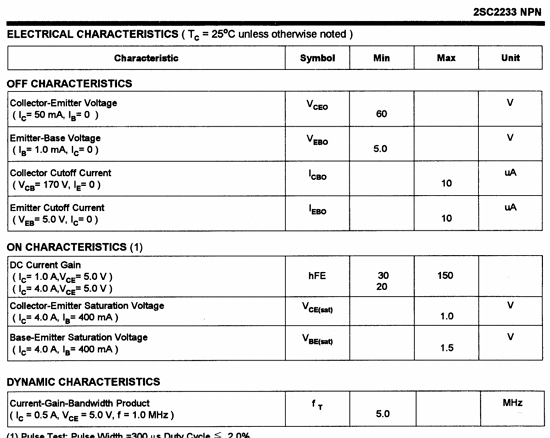

Features

1. Low Collector-Emitter Saturation Voltage : Vce(sat)=1.0V(Max) @Ic=4.0A, Ib=0.4A
2. DC Current Gain : hFE = 30-150 @ Ic=1.0A
3. Large Collector Current Capability

components

Maximum Ratings :

1. Collector-Emitter Voltage: Vceo = 60 V
2. Collector-Base Voltage: Vcbo = 200 V
3. Emitter-Base Voltage: Vebo = 5.0 V
4. Base Current : Ib = 2.0 A
5. Total Power Dissipation: Pd = 40 W



Other data sheets are available within the file: C2233
