74HC14 Datasheet – Hex inverting Schmitt trigger – Philips

Part Number: 74HC14, 74HCT14

Function: Hex inverting Schmitt trigger

Manufacturer: Philips

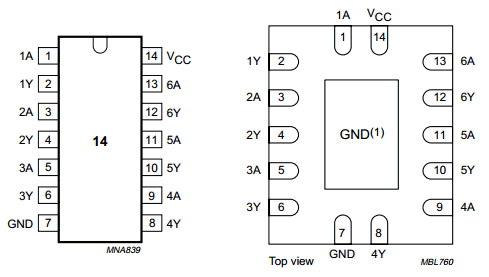

74HC14 Pinout 74HC14 Pinout

Description

The Device are high-speed Si-gate CMOS devices and are pin compatible with low power Schottky TTL (LSTTL). They are specified in compliance with JEDEC standard no. 7A.
The Device provide six inverting buffers with Schmitt-trigger action. They are capable of transforming slowly changing input signals into sharply defined, jitter-free output signals.

Features
1. Applications:
– Wave and pulse shapers
– Astable multivibrators
– Monostable multivibrators.
2. Complies with JEDEC standard no. 7A

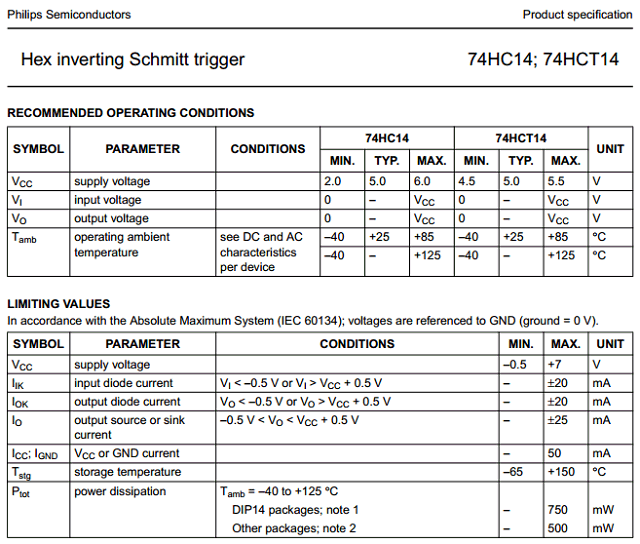

74HC14 Datasheet
