ACM1602T Datasheet PDF – 16 Char x 2 line, LCD Module

Part Number: ACM1602T

Function: 16 Char x 2 line, LCD Module

Manufacturer: AZ Displays

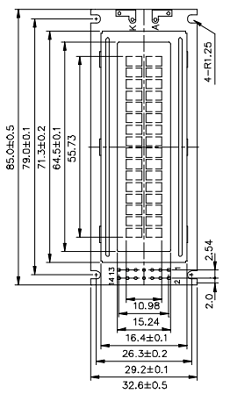

Image:

ACM1602T datasheet



Description

This is 16 characters x 2 lines, LCD Module.

Overall Module Size :

(1) 85.0mm(W) x 32.6mm(H) x max  13.5mm(D) for LED backlight version
(2) 85.0mm(W) x 32.6mm(H) x max  9.5mm(D) for reflective version

Specifications:

1. Overall Module Size 85.0mm(W) x 32.6mm(H) x max 13.5mm(D) for LED backlight
version
85.0mm(W) x 32.6mm(H) x max 9.5mm(D) for reflective version

2. Dot Size 0.56mm(W) x 0.61mm(H)

3. Dot Pitch 0.61mm(W) x 0.66mm(H)

4. Duty 1/16

5. Controller IC KS0066

6. LC Fluid Options TN, STN

7. Polarizer Options Reflective, Transflective, Transmissive

8. Backlight Options LED

9. Temperature Range Options Standard ( 0ºC ~ 50ºC), Wide( -20ºC ~ 70ºC )

Other data sheets are available within the file:

ACM1602, ACM1602TFLBD-T, ACM1602TFLBST, ACM1602TFLBW-T
