AD396 Datasheet – Quad 14-Bit D/A Converter ( PDF )

Part Number: AD396

Function: uP Compatible Multiplying Quad 14-Bit D/A Converter

Package: DIP 28 Pin Type

Manufacturer: Analog Devices

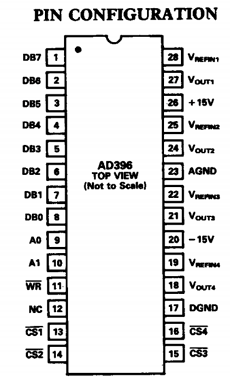

Pinouts:

AD396 datasheet



Description

The AD396 is a high-speed microprocessor compatible Quad 14-bit digital-to-analog converter. The device contains four 14-bit, low power multiplying digital-to-analog converters followed by precision voltage output amplifiers all in a compact 28-pin hybrid package. The design is based on a proprietary latched 14-bit CMOS DAC chip which reduces chip count and provides high reliability.

Features

1. Four, Pre-Trimmed, 14-Bit CMOS DACs

2. Double buffered for simultaneous update

3. Precision output amplifiers for voltages Out



Official Homepage: https://www.analog.com/en/products/ad396.html



Other data sheets are available within the file: AD396JD, AD396KD, AD396SD, AD396TD
