AD5412 Datasheet – Current Source and Voltage Output DAC

Part Number: AD5412

Function: 12-Bit, Serial Input, Current Source and Voltage Output DAC

Package: TSSOP and LFCSP type

Manufacturer: Analog Devices

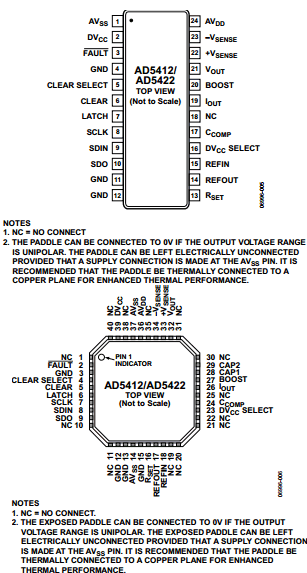

Pinouts:

AD5412 datasheet

Description

The AD5412/AD5422 are low-cost, precision, fully integrated 12-/16-bit digital-to-analog converters (DAC) offering a programmable current source and programmable voltage output designed to meet the requirements of industrial process control applications.

Features
12-/16-bit resolution and monotonicity
Current output ranges: 4 mA to 20 mA, 0 mA to 20 mA,
0 mA to 24 mA
±0.01 % FSR typical total unadjusted error (TUE)
±3 ppm/°C output drift
Voltage output ranges: 0 V to 5 V, 0 V to 10 V, ±5 V, ±10 V
10% overrange
±0.01 % FSR typical total unadjusted error (TUE)
±2 ppm/°C output drift
Flexible serial digital interface
On-chip output fault detection
On-chip reference: 10 ppm/°C maximum
Optional regulated DVCC output
Asynchronous clear function
Power supply range
AVDD: 10.8 V to 40 V
AVSS: −26.4 V to −3 V/0 V
Output loop compliance: AVDD – 2.5 V
Temperature range: −40°C to +85°C
TSSOP and LFCSP packages

Applications
Process control
Actuator control
PLC
HART network connectivity (LFCSP package only)

Other data sheets are available within the file:
AD5412ACPZ-REEL, AD5412ACPZ-REEL7, AD5412AREZ, AD5412AREZ-REEL7
